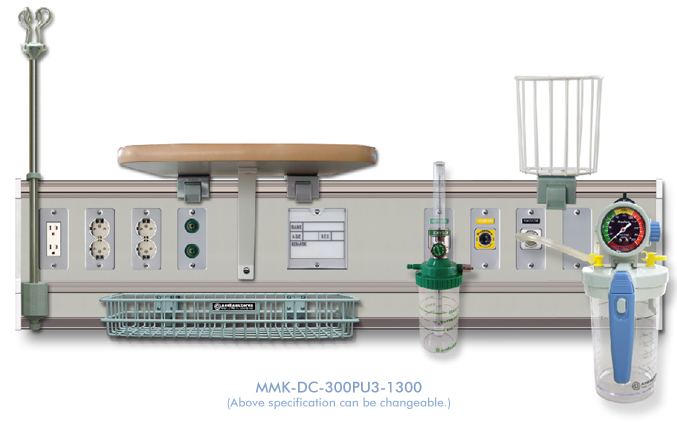

Deluxe Console System

  • Deluxe Console System
    It's an intensive care system for a serious care that equips electric power, medical oxygen, medical vacuum, personal reading light, nurse call on one panel to treat efficiently patients. This system fixs and installs on wall side in ICU to nurse and manage patients easily so that also offers more safe and efficient care circumstance to patients and medical staff.
    This system grows out of a previous fixed specifications and simple shape so that it's possible to a various composition and it feels beautiful aprerance, too. It makes hospital more safe ward atmosphere.

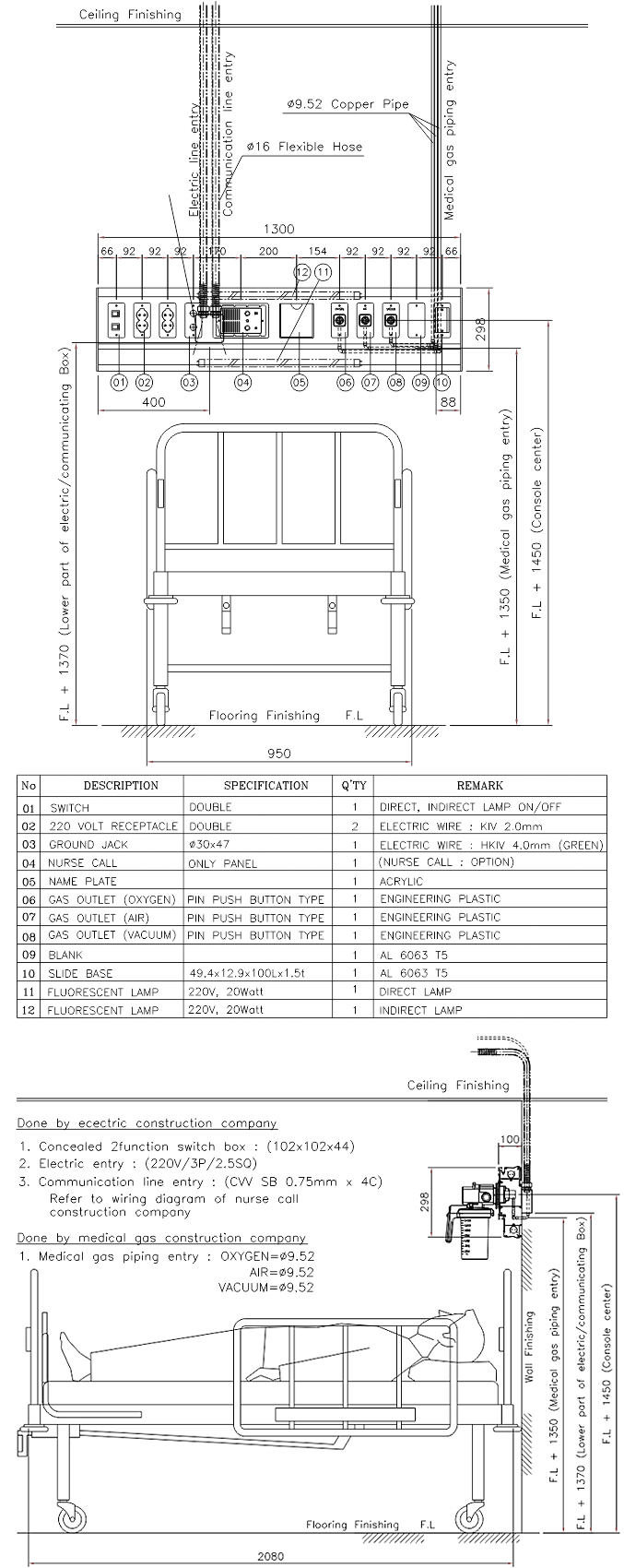

  • Basic Construction
    * Main Frame : Aluminum profile 2t anodizing finished
    * Lower Cover : Aluminum profile 1.5t baked painting
    * Front Panel : 169mm x 1.6t Steel Plate
    * Lower Panel : 55mm x 1.6t Steel Plate
    * Standard Lenght : Body - 1,300mm
    * Total Weight : 12.930Kg (9.946 Kg/m)

    Optional Accessory
    Monitor Shelf / Infusion pole
    B.P Basket / Utility Basket / Nurse Call
    Flowmeter with Humidifier / Wall Suction Unit
