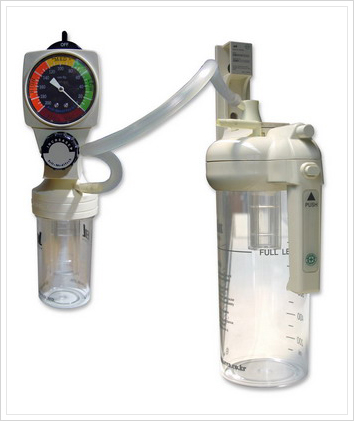

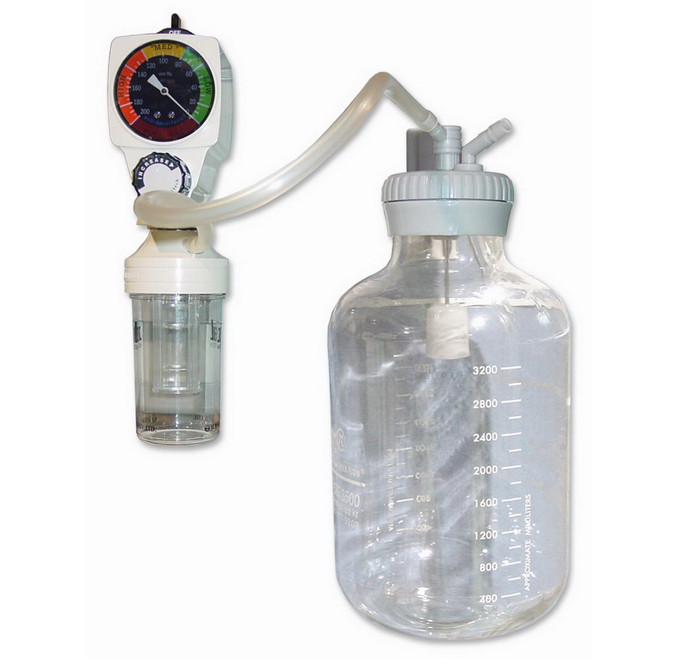

Two Bottle Suction Unit
- With connecting to vacuum outlet and as regulationg pressure properly, it's device to remove a foreign substance from patient.
Separating suction trap unit has an automatical opened and closed floating valve taking double protection fuction against a foreign substance. And it endures not only high pressure of stirilizing disinfection but also infoms a dangerous situation easily as alarm sound operated before foreign substance overflows.
As adopting fifth grade of bellows gauge, suction regulator can regulate at any level between 0 to 250mmHg.
PRIMARY SPECIFICATIONS
Model : MM-WS120A0
Features
* 5 Steps bellows suction gauge inside durable
ABA housing
* Reliable anti overflow floater
* Unbreakable polycabonate collection bottle
* Unification of suction regulator with
collection bottle
* New diaphram method for accuracy of
suction pressure.
* 3 Way anti positive pressure relief valve
original setting.
Construction
* Vacuum Range : 0~250mmHg to full line(65)
* 3 Mode selector : Regulated/Off/Full line
* Collection bottle : 1200cc possibility for
3000cc remote collection bottle (Optional)
* Slid & Hook base wall bracket.
* Suction pressure Inc/Dic knob.
* Stainless bottle locker.
