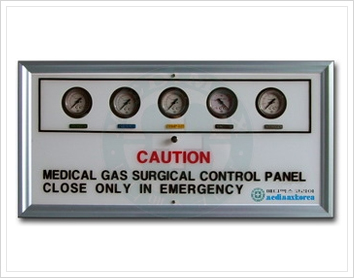

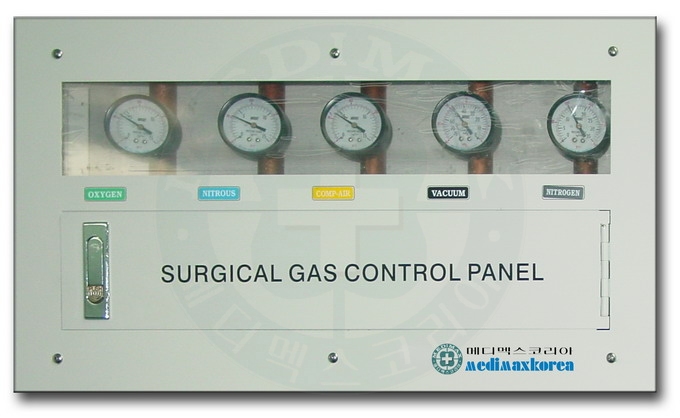

Panel de control de gas quirúrgico

  • Sistema maestro de alarma
  • Important medical gaseous using area in hospital devides into ER, ICU and OR. It's system easily to repair only a strange occurred room of medical gas without having an effect on another rooms.


    PRIMARY SPECIFICATIONS

    Type
    * Wall built-in for concealed piping

    Construction
    * Box : Steel 1.2t baked painting
    * Panel : Steel 1.2t baked painting
    * Emergency breakable acryl panel
    * 20 Kg/Cm2 max / ball valve - KSD 5301

    Gauge
    * Oxygen : 15 Kg/Cm2
    * Nitrous-Oxide : 15 Kg/Cm2
    * Comp-air : 15 Kg/Cm2
    * Vacuum : 760 mmHg
    * Nitrogen : 35 Kg/Cm2
Sistema maestro de alarma
Model Number Gas
MM-11631A0 O, N, V
MM-11641A0 O, N, A, V
MM-11651A0 O, N, A, V, N2
